Vision Research Phantom v2640 Specifications
| Max Resolution | 2048x1952 |
|---|---|
| Pixel Size | 27 um |
| Sensor Size | 27.6 x 26.3 mm |
| Sensor Type | CMOS |
| Bit Depth | 12-bit |
| Throughput | 26 Gpx/s |
| Max Frame Rate | 25030 fps |
| Memory Options | 72 GB, 144 GB, 288 GB |
| Storage | Phantom CineMag IV (1TB, 2TB), Phantom CineMag V (2TB, 8TB) |
| Interfaces | 1Gb Ethernet, 10Gb Ethernet (rugged), 2x HD-SDI, GPS, Range Data, Remote, USB, Capture, RS232, BNC programmable I/O |
| Lens Mount | Nikon F |
| Power | 240 V |
| Weight | 17 lbs |
| Dimensions | 28 x 19 x 18.88 cm (11 x 7.5 x 7.43 in) L x W x H without handle |
| Features | 10Gb Ethernet, Sync Snapshot for DIC/BOS, Programmable I/O, Exposure Index (EI), PIV mode, Burst Mode, Continuous Recording, IBAT (Image-Based Auto-Trigger), Quiet Fan, Tone Curve, Internal Mechanical Shutter, Standard/HS/Bright Field/Binning modes, CDS (Correlated Double Sampling), FAST option (142ns exposure, export controlled) |
Documents
- datasheet: Phantom v2640 Data Sheet.pdf

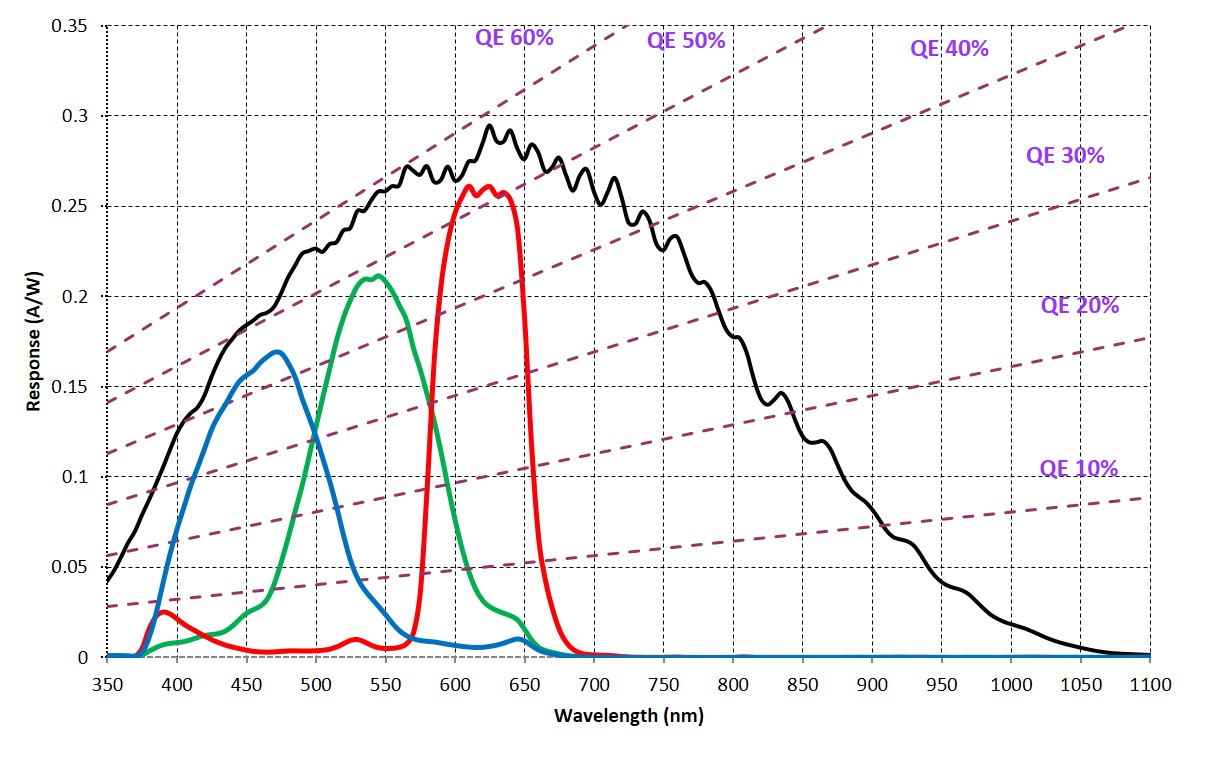

- drawing: Spectral Response Curve v2640.jpg
