Vision Research Phantom S990 Specifications
| Max Resolution | 4096x2304 |
|---|---|
| Pixel Size | 6.75 um |
| Sensor Size | 27.6 x 15.5 mm |
| Sensor Type | CMOS |
| Bit Depth | 12/8-bit selectable |
| Throughput | 9 Gpx/s |
| Max Frame Rate | 938 fps @ 4096x2304; 1000 fps @ 4096x2160 |
| Interfaces | CoaXPress |
| Features | Streaming machine vision camera (no internal RAM/storage), Rolling/Global/Bright Field shutter selection, Sturdy metal body, Made in USA |
Documents
- datasheet: Phantom S990 Data Sheet.pdf
- manual: S990 Quick Start Guide v1.5.pdf
- manual: S990 Detailed Calibration process.docx
- brochure: Vision Research Introduces Phantom S990 Streaming Camera for Machine Vision Applications.docx

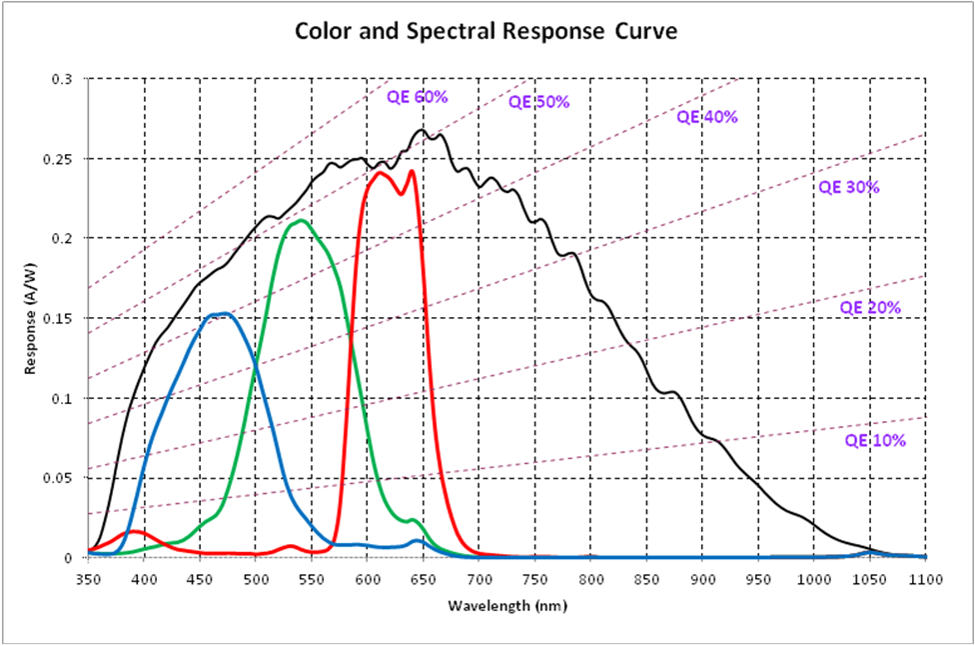

- drawing: Spectral Response Curve S990.png
Need something not listed? Contact Aimed Research.
