iX Cameras i-SPEED 3 Specifications
| Max Resolution | 1280x1024 |
|---|---|
| Pixel Size | 21 µm |
| Sensor Size | 21.5mm x 26.9mm |
| Sensor Type | CMOS |
| Bit Depth | 10-bit |
| Max Frame Rate | 150000 fps |
| Memory Options | 8 GB (i-SPEED 3); 4 GB (i-SPEED TR) |
| Interfaces | GigE |
| Lens Mount | Nikon F-Mount |
| Features | Control Display Unit; Battery-Powered; portable |
Documents
- datasheet: i-Speed 3 Data Sheet.pdf
- datasheet: i-Speed 3 Data Sheet (Olympus).pdf

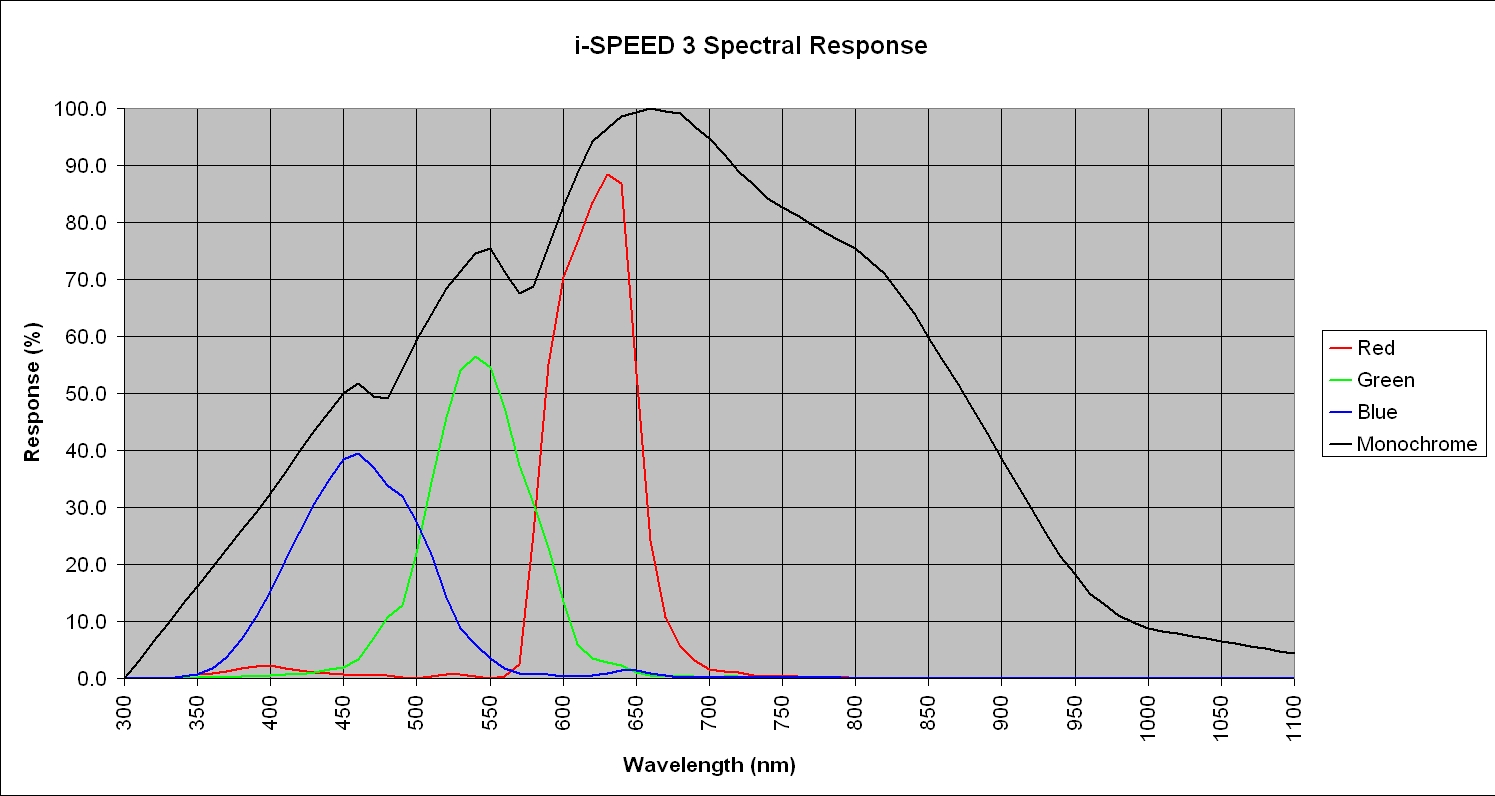

- image: i-SPEED 3 Spectral Response.JPG
Need something not listed? Contact Aimed Research.
Variant: i-SPEED TR 3
Variant: i-SPEED TR 3 FS
Documents
- manual: Getting Started Guide K10007789 EN.pdf
- manual: i-SPEED TR 3 FS DF K10007149 EN.pdf
- manual: i-SPEED 3 Software Suite K5070577 EN.pdf
- software: i-SPEEDSuiteSetup.exe (available on request)
- software: i-SPEEDViewerSetup.exe (available on request)
Need something not listed? Contact Aimed Research.
